FA97R57DM71S4詳細信息
FA97R57DM71S4
關鍵詞：0.55KW適配平行軸減速電機_FA97R57DM71S4_FA97R57DRS80S4
FA97R57DM71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA97R57DM71S4 | 2907 | 0.25KW | 0.45r/min | 4670N.m | 288kg | 27500N | 0.90 |
| FA97R57DM71S4 | 2553 | 0.25KW | 0.51r/min | 4180N.m | 288kg | 30300N | 1.05 |
| FA97R57DM71S4 | 2245 | 0.25KW | 0.58r/min | 3670N.m | 288kg | 31600N | 1.15 |
| FA97R57DM71S4 | 1970 | 0.25KW | 0.66r/min | 3200N.m | 288kg | 32800N | 1.35 |
| FA97R57DM71S4 | 1527 | 0.25KW | 0.85r/min | 2500N.m | 288kg | 34400N | 1.70 |
| FA97R57DM71S4 | 1327 | 0.25KW | 0.98r/min | 2090N.m | 288kg | 35200N | 2.00 |
| FA97R57DM71S4 | 1171 | 0.25KW | 1.10r/min | 1910N.m | 288kg | 35500N | 2.20 |
| FA97R57DM71S4 | 1022 | 0.25KW | 1.30r/min | 1670N.m | 288kg | 36000N | 2.60 |
| FA97R57DM71S4 | 1722 | 0.25KW | 0.75r/min | 2820N.m | 288kg | 33700N | 1.50 |
FA97R57DRS80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| FA97R57DRS80S4 | 1327 | 0.55KW | 1.00r/min | 4550N.m | 293kg | 29100N | 0.95 |
| FA97R57DRS80S4 | 1171 | 0.55KW | 1.20r/min | 4080N.m | 293kg | 30500N | 1.05 |
| FA97R57DRS80S4 | 1022 | 0.55KW | 1.40r/min | 3570N.m | 293kg | 31900N | 1.20 |
| FA97R57DRS80S4 | 898 | 0.55KW | 1.50r/min | 3050N.m | 293kg | 33200N | 1.40 |
| FA97R57DRS80S4 | 784 | 0.55KW | 1.80r/min | 2700N.m | 293kg | 34000N | 1.60 |
| FA97R57DRS80S4 | 690 | 0.55KW | 2.00r/min | 2340N.m | 293kg | 34700N | 1.85 |
| FA97R57DRS80S4 | 605 | 0.55KW | 2.30r/min | 2070N.m | 293kg | 35300N | 2.10 |
| FA97R57DRS80S4 | 529 | 0.55KW | 2.60r/min | 1790N.m | 293kg | 35800N | 2.40 |
| FA97R57DRS80S4 | 467 | 0.55KW | 3.00r/min | 1580N.m | 293kg | 36100N | 2.70 |
| FA97R57DRS80S4 | 406 | 0.55KW | 3.40r/min | 1360N.m | 293kg | 36500N | 3.20 |
| FA97R57DRS80S4 | 363 | 0.55KW | 3.80r/min | 1220N.m | 293kg | 36700N | 3.50 |
FA97R57DM71S4減速機電動機類型：
F97R57DM71S4底腳安裝平行軸—斜齒輪平行軸斜齒輪減速機
FA97BR57DM71S4底腳空心軸安裝平行軸—斜齒輪減速機
FV97BR57DM71S4底腳花鍵空心軸安裝平行軸—斜齒輪減速機
FA97R57DM71S4空心軸安裝平行軸—斜齒輪減速機
FV97R57DM71S4花鍵空心軸安裝平行軸—斜齒輪減速機
FAF97R57DM71S4是B5法蘭空心軸安裝平行軸—斜齒輪減速機
FVF97R57DM71S4是B5法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FAZ97R57DM71S4是B14法蘭安裝平行軸—斜齒輪減速機
FVZ97R57DM71S4是B14法蘭花鍵空心軸安裝平行軸—斜齒輪減速機
FF97R57DM71S4是B5法蘭安裝平行軸—斜齒輪減速機
FH97BR57DM71S4底腳空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FH97R57DM71S4是空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHF97R57DM71S4是B5法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機
FHZ97R57DM71S4是B14法蘭空心軸鎖緊盤安裝平行軸—斜齒輪減速機

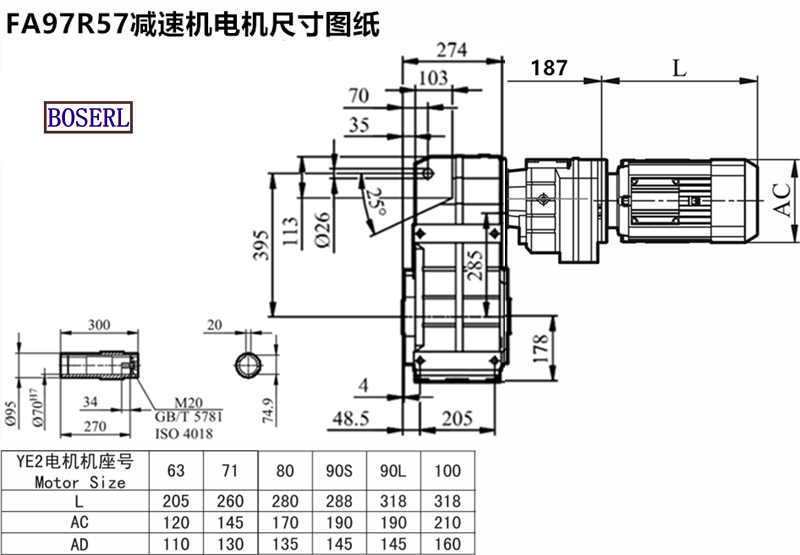

FA97R57DM71S4減速機電動機安裝尺寸圖紙
FA97R57DM71S4減速機電動機生產廠家，看廠請提前三天預約三相變頻電機減速機
關鍵詞:FA系列減速機與電機_變頻減速機_三相變頻電機減速器一套_變頻減速電機_變頻剎車電動機齒輪箱_三相變頻電機減速機_變頻減速電機生產廠家
FA系列減速機型號：FA27減速機,FA37減速機,FA47減速機,FA67減速機,FA77減速機,FA87減速機,FA97減速機,FA107減速機,FA127減速機,FA157減速機
FA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.55KW適配平行軸減速電機 FA97R57DM71S4 FA97R57DRS80S4
