RF97DM100LC4詳細信息
RF97DM100LC4
訂購熱線：13360667204
關鍵詞：30KW單項減速機電機_RF97DM100LC4_RF97DM100LS4
RF97DM100LC4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF97DM100LC4 | 150.78 | 3kw | 9.3rpm | 3080N.m | 125kg | 16200N | 0.95 |
| RF97DM100LC4 | 126.75 | 3kw | 11rpm | 2590N.m | 125kg | 23600N | 1.15 |
| RF97DM100LC4 | 116.48 | 3kw | 12rpm | 2380N.m | 125kg | 24700N | 1.25 |
| RF97DM100LC4 | 103.44 | 3kw | 14rpm | 2110N.m | 125kg | 25900N | 1.4 |
| RF97DM100LC4 | 92.48 | 3kw | 15rpm | 1890N.m | 125kg | 26800N | 1.6 |
| RF97DM100LC4 | 83.15 | 3kw | 17rpm | 1700N.m | 125kg | 27300N | 1.75 |
| RF97DM100LC4 | 72.17 | 3kw | 19rpm | 1470N.m | 125kg | 27700N | 2 |
| RF97DM100LC4 | 65.21 | 3kw | 21rpm | 1330N.m | 125kg | 27000N | 2.2 |
| RF97DM100LC4 | 59.92 | 3kw | 23rpm | 1220N.m | 125kg | 26400N | 2.4 |
| RF97DM100LC4 | 53.21 | 3kw | 26rpm | 1080N.m | 125kg | 25600N | 2.8 |
| RF97DM100LC4 | 47.58 | 3kw | 29rpm | 970N.m | 125kg | 24800N | 3.1 |
| RF97DM100LC4 | 42.78 | 3kw | 33rpm | 870N.m | 125kg | 24000N | 3.4 |
| RF97DM100LC4 | 37.13 | 3kw | 38rpm | 755N.m | 125kg | 23100N | 4 |
| RF97DM100LC4 | 33.25 | 3kw | 42rpm | 680N.m | 125kg | 22400N | 4.2 |
RF97DM100LS4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF97DM100LS4 | 150.78 | 3kw | 9.3rpm | 3080N.m | 125kg | 16200N | 0.95 |
| RF97DM100LS4 | 126.75 | 3kw | 11rpm | 2590N.m | 125kg | 23600N | 1.15 |
| RF97DM100LS4 | 116.48 | 3kw | 12rpm | 2380N.m | 125kg | 24700N | 1.25 |
| RF97DM100LS4 | 103.44 | 3kw | 14rpm | 2110N.m | 125kg | 25900N | 1.4 |
| RF97DM100LS4 | 92.48 | 3kw | 15rpm | 1890N.m | 125kg | 26800N | 1.6 |
| RF97DM100LS4 | 83.15 | 3kw | 17rpm | 1700N.m | 125kg | 27300N | 1.75 |
| RF97DM100LS4 | 72.17 | 3kw | 19rpm | 1470N.m | 125kg | 27700N | 2 |
| RF97DM100LS4 | 65.21 | 3kw | 21rpm | 1330N.m | 125kg | 27000N | 2.2 |
| RF97DM100LS4 | 59.92 | 3kw | 23rpm | 1220N.m | 125kg | 26400N | 2.4 |
| RF97DM100LS4 | 53.21 | 3kw | 26rpm | 1080N.m | 125kg | 25600N | 2.8 |
| RF97DM100LS4 | 47.58 | 3kw | 29rpm | 970N.m | 125kg | 24800N | 3.1 |
| RF97DM100LS4 | 42.78 | 3kw | 33rpm | 870N.m | 125kg | 24000N | 3.4 |
| RF97DM100LS4 | 37.13 | 3kw | 38rpm | 755N.m | 125kg | 23100N | 4 |
| RF97DM100LS4 | 33.25 | 3kw | 42rpm | 680N.m | 125kg | 22400N | 4.2 |

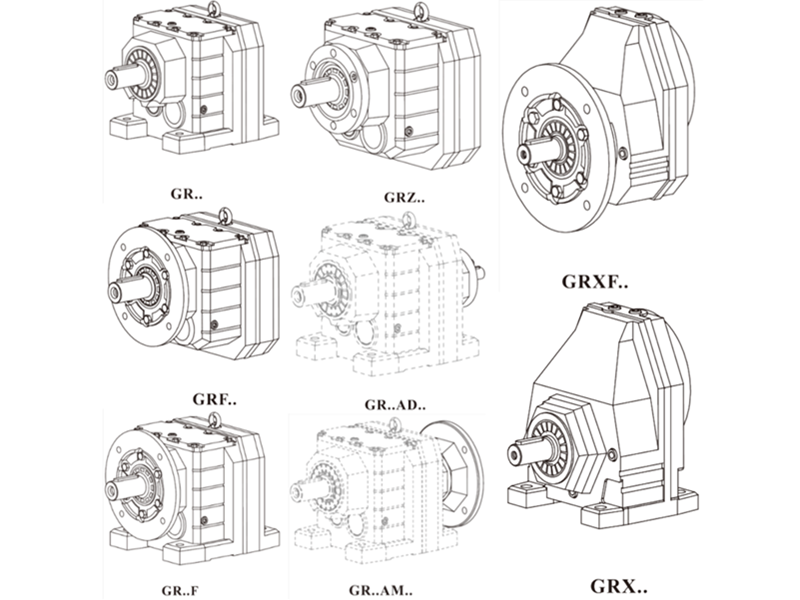

RF97DM100LC4減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

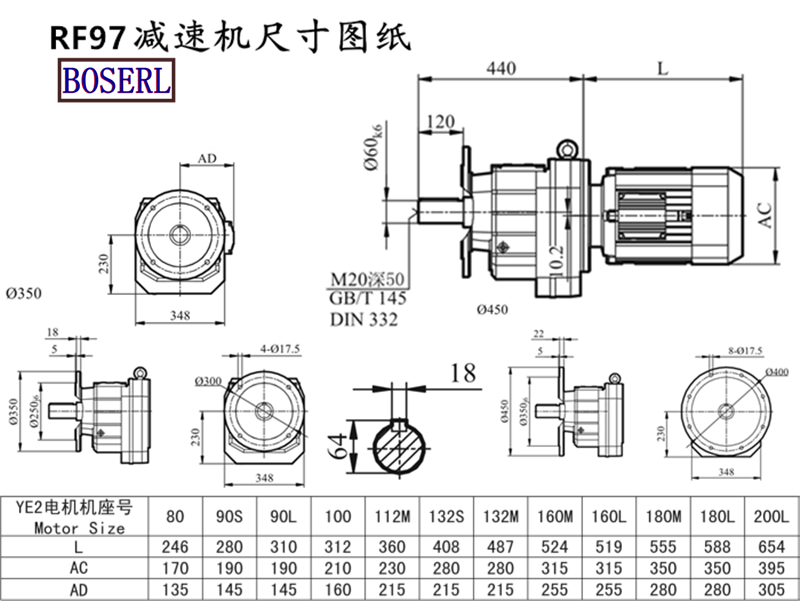

RF97DM100LC4減速機馬達安裝尺寸圖紙
RF97DM100LC4減速機生產工廠展示：看廠請?zhí)崆叭祛A約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 30KW單項減速機電機 RF97DM100LC4 RF97DM100LS4
- 上一條RF97DRE90S4
- 下一條RF97DR100L4
